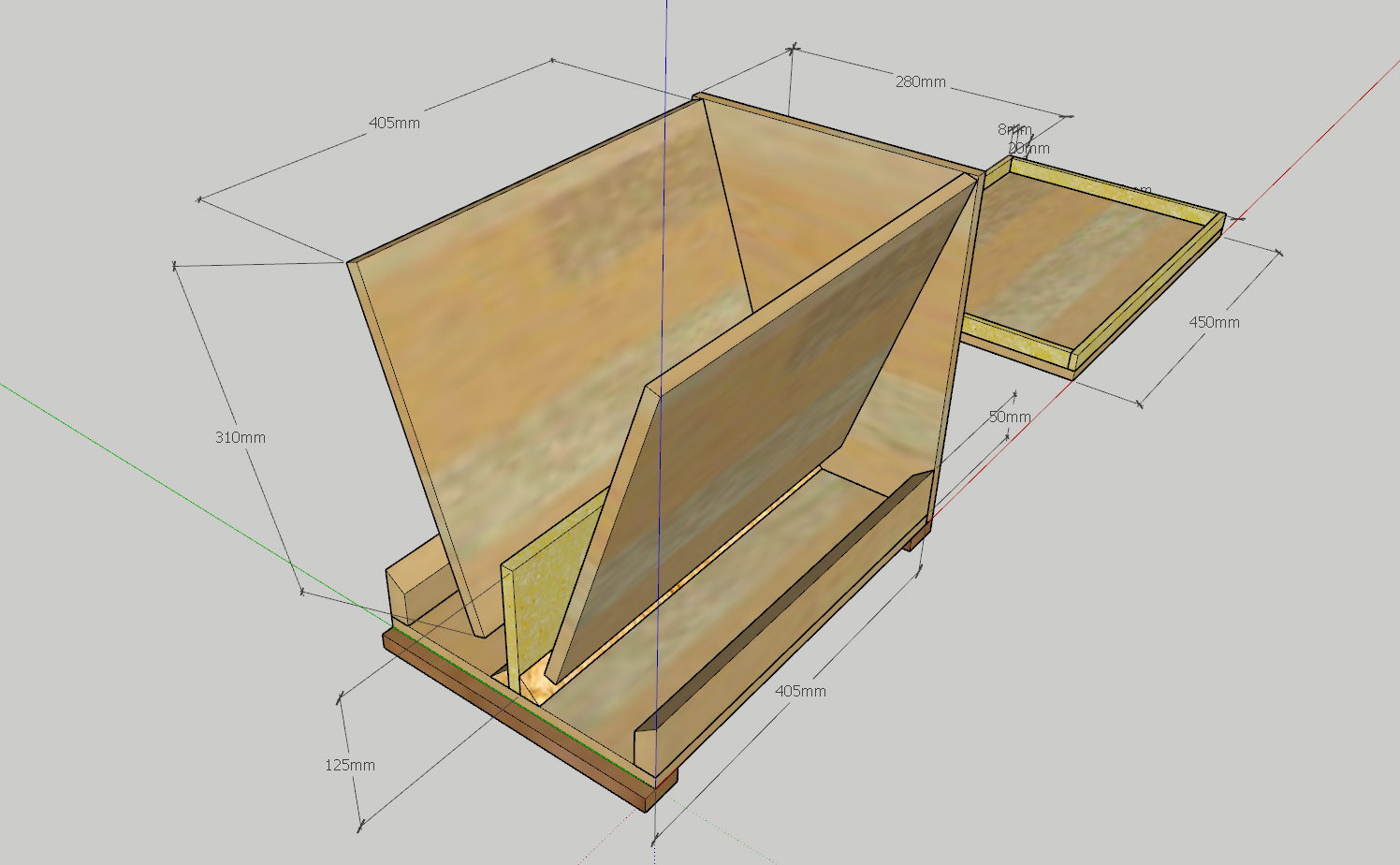

This 3D design represents a food container intended for use when the pigeon loft is left unattended for an extended period. It was created as a reference for DIY enthusiasts who wish to replicate commercially available products at home.

The measurements from the three illustrations have been converted to inches for convenience.

• Front Panel Width: 405 mm → approximately 15.94 inches
• Front Panel Height: 310 mm → approximately 12.20 inches
• Base Width: 405 mm → approximately 15.94 inches
• Base Height: 125 mm → approximately 4.92 inches
• Sliding Tray Width: 280 mm → approximately 11.02 inches
• Sliding Tray Depth: 450 mm → approximately 17.72 inches
• Sliding Tray Thickness: 8 mm → approximately 0.31 inches
• Side Panel Height: 50 mm → approximately 1.97 inches

• Width: 405 mm → approximately 15.94 inches
• Height: 345 mm → approximately 13.58 inches
• Depth: 280 mm → approximately 11.02 inches
• Slanted Front Panel Height: 125 mm → approximately 4.92 inches
• Base Thickness: 50 mm → approximately 1.97 inches

• Length of the Tray: 450 mm → approximately 17.72 inches
• Width of the Tray: 300 mm → approximately 11.81 inches
• Height of the Raised Edges: 20 mm → approximately 0.79 inches
• Base Thickness: 8 mm → approximately 0.31 inches
• Thickness of the Raised Edges: 22 mm → approximately 0.87 inches
• Distance from the Left Edge to the Tray: 50 mm → approximately 1.97 inches
