DIY Wooden Pigeon Feeder: Step-by-Step Guide & Free PDF Plans January 31, 2026 \| Hit: 12

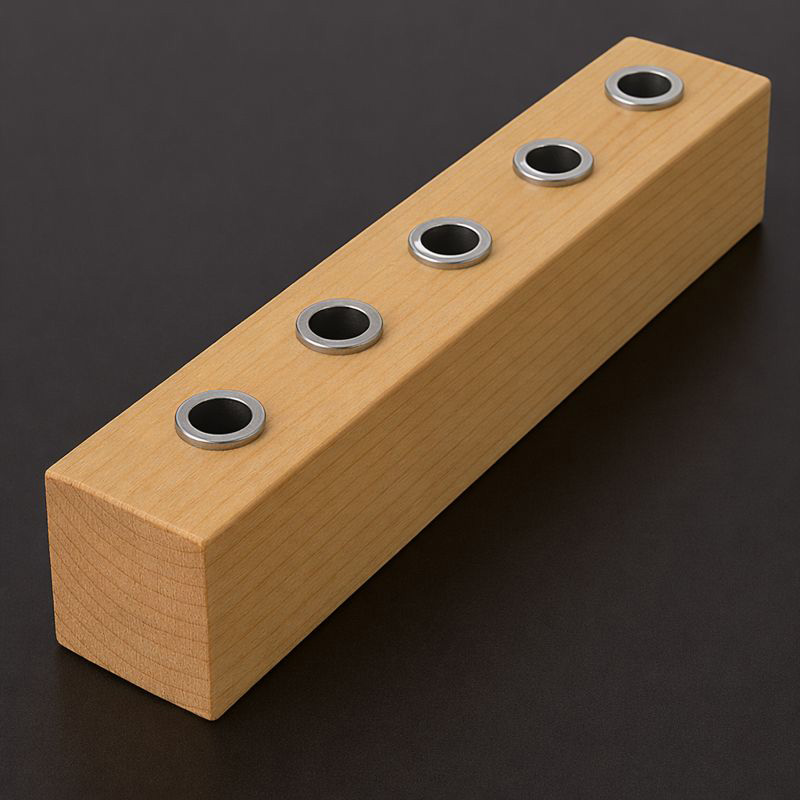

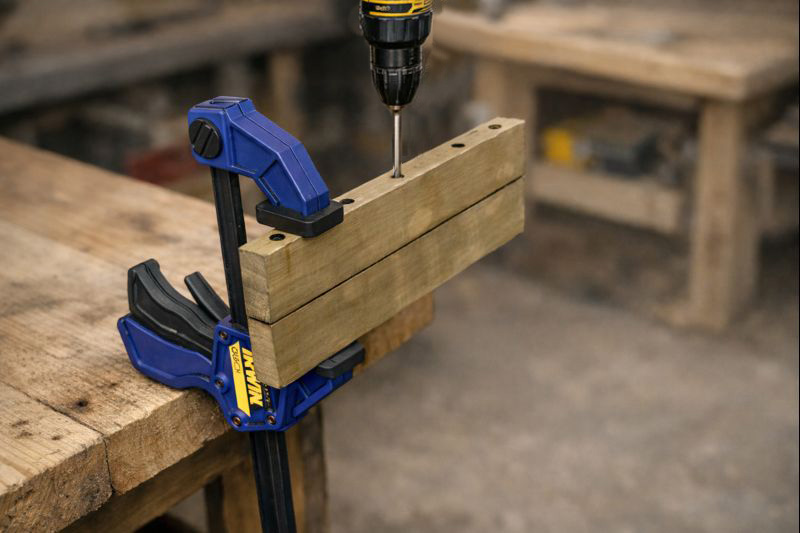

Hello fellow fanciers and woodworkers! Today, I’m excited to share my custom-designed Wooden Pigeon Feeders. Whether you’re a beginner or a pro, these designs will help keep your loft organized and your birds well-fed. Two Versions for Your Loft Simple Version: A straightforward, functional design focused on ease of assembly. Perfect for a quick weekend project. Pro Version: This version features enhanced durability and a refined finish using wood dowel joinery for maximum structural integrity. The Secret Tool: My Custom Dowel Jig To achieve the "Pro" finish, precise drilling is key. I’ve designed a simple yet highly effective Dowel Jig to ensure every hole is perfectly vertical and spaced consistently. Jig Specifications: Material: 18mm (W) x 30–50mm (H) wooden timber. Length: Customizable from 300mm to 1200mm depending on your needs. Feature: Integrated Metallic Spacers (Bushings) to guide the drill bit. This jig allows you to drill dowel holes with consistent 80mm spacing, ensuring your feeder looks professional and stays sturdy for years. [Image 1] These are the 8mm metallic spacers used to protect the jig and guide the drill bit. [Image 2] My custom-made 18mm wide jig. You can see the metallic spacers embedded for durability. [Image 3] Here is the jig in action. It is clamped onto the 18mm workpiece, ensuring perfectly vertical holes every time. "Note: The conceptual images and illustrations in this post were generated using AI for visualization purposes." [Image 4] Real-life look at the finished feeder. This is an actual photograph of the handmade feeder, not AI. Resources & Links* 1. Download the Plans Ready to build your own? Download the detailed assembly instructions and cutting list below: 👉 [Download PDF Plan: COLEEA Wood Feeder.pdf] 2. Where to Buy Metallic Spacers I sourced my metallic spacers (8mm diameter) from Amazon Japan. They fit the drill bit perfectly and prevent the wood of the jig from wearing out. 🔗 [Link to Metallic Spacers on Amazon Japan] Happy building! If you have any questions about the dimensions or the assembly process, feel free to leave a comment or visit COLEEA.COM for more loft tips.
