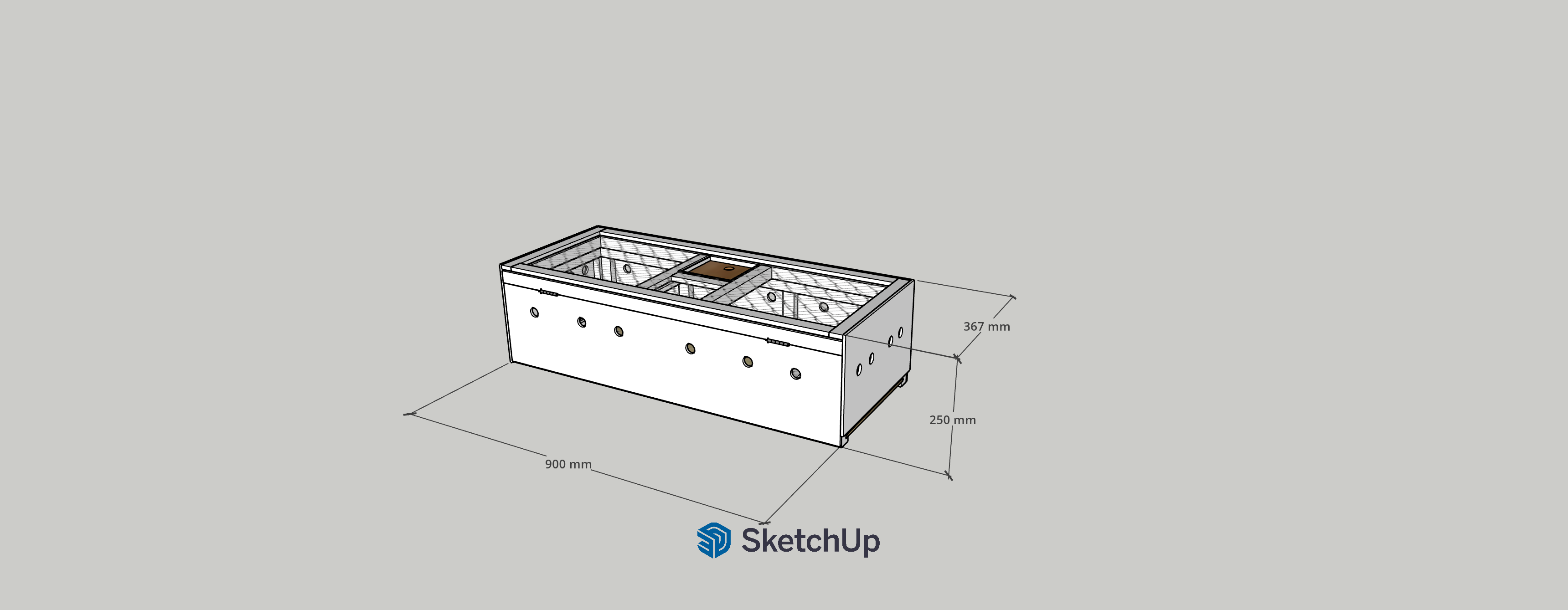

Hello fellow fanciers and woodworkers! Today, I’m excited to share my custom-designed Professional Pigeon Transport Box. This box is built for durability, ventilation, and ease of transport. Two Key Views of the Design
"A Look at the Real-Life Prototype" Below are photos of the actual transport box I built using these plans. Please note that these photos were taken before painting to show the raw woodworking details and the precision of the joints. Once you finish the assembly, you can apply a bird-safe paint or sealant of your choice!

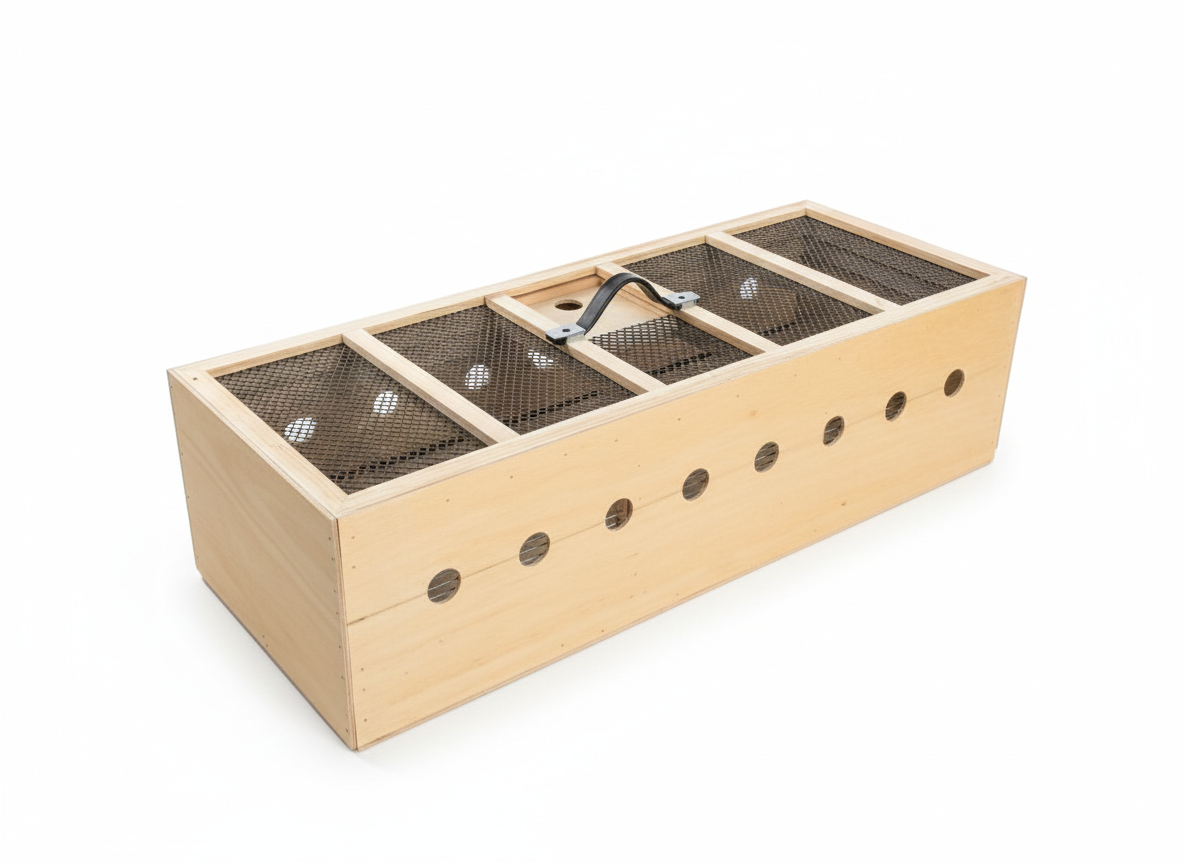

[Image 3: Perspective View from the Rear] Caption: A perspective view from the back, showing the solid frame and overall proportions. Technical Note: This photo shows the unit before painting (raw wood). You can see the clean joints and the sturdy structure of the main body.

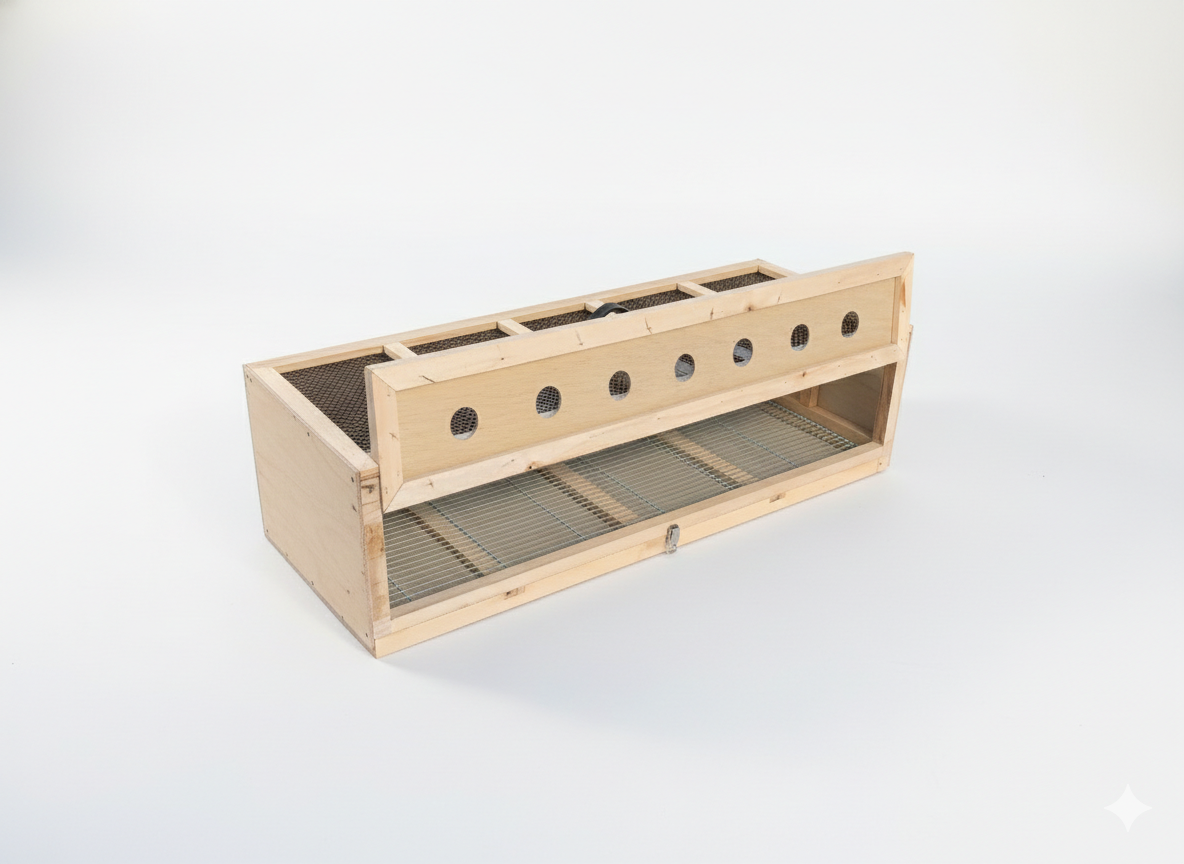

[Image 4: Front View with Gate Open] Caption: Front view with the gate fully opened to show the internal accessibility. Technical Note: The front gate opens smoothly without hitting the bottom frame. This is also a pre-painting (raw wood) shot, highlighting the 6mm plywood finish and the precise fit of the door.
Essential Woodworking Techniques

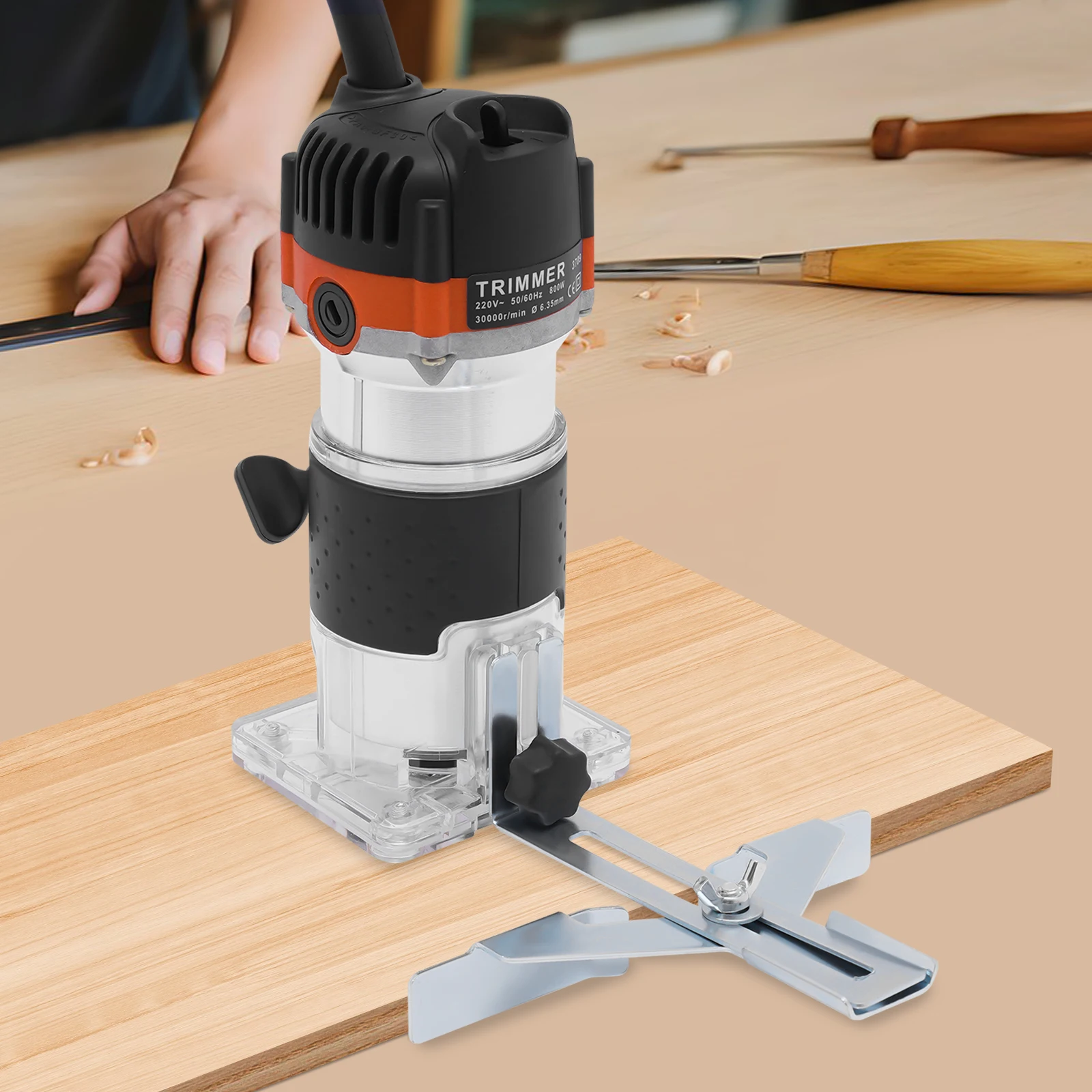

This project focuses on a Sliding Rail System for the waste tray and top entry door. To achieve this professional finish, specific power tools are highly recommended: Table Saw: Essential for making precise, straight cuts and consistent grooves. Wood Trimmer: Perfect for carving out the smooth rails (grooves) where the panels slide.
Alternative Construction: For Those Without Table Saws or Trimmers If you cannot carve grooves for the sliding parts, use these methods for the Bottom Tray and Top Entry Door: 1. The Cleat (Wood Strip) Method: Instead of carving a rail into the frame, attach two thin wood strips (cleats) to the inside of the frame. The gap between these strips creates a "track" for the Bottom Tray and Top Door to slide in and out. This is much easier to do with just glue and nails.
2. The Hinge Method (For the Top Entry Door): 3. The "Drop-in" or "Stopper" Method (For the Bottom Tray): Customizable for Your Vehicle
The most important part of a transport box is that it fits your car! I designed this specifically for my vehicle's trunk. When you build yours, make sure to measure your cargo space first and adjust the dimensions accordingly. Resources & Links
1. Download the Full PDF Plans
Ready to build? I’ve prepared a comprehensive 6-page technical plan including all measurements, part breakdowns, and alternative assembly tips.  [Download PDF Plan: Technical_Plan_Pigeon_Transport_Box_COLEEA.pdf]
2. Need Help with the Build?
If the grooving process seems too difficult, check out YouTube tutorials for "Table Saw Grooving" or "Trimmer Router Basics." These skills will take your loft DIY projects to the next level!
Happy building! If you have any questions about the dimensions or the assembly process, feel free to leave a comment or visit COLEEA.COM for more professional racing pigeon gear and tips. |
